Description

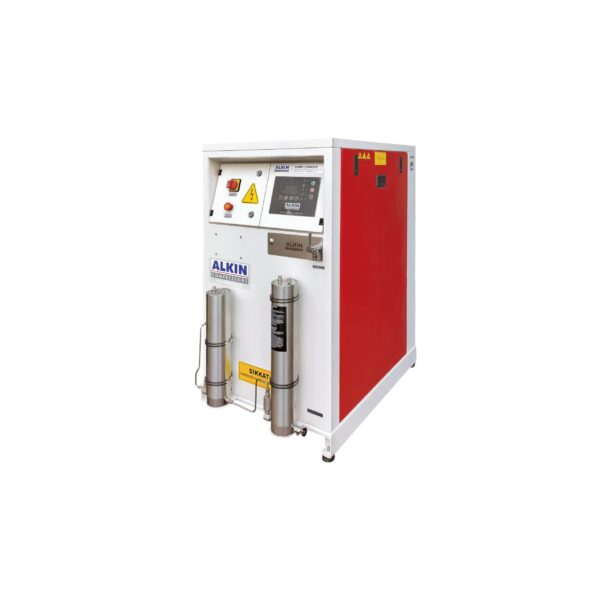

| HIGH PRESSURE AIR COMPRESSOR | |||||
| MODEL | W32 – CANOPY | ||||
| INTENDED USE | Compressed Air / Breathing Air | ||||
| FILTERSYSTEM | P41 | ||||
| WORKING PRESSURE | 225 Bar (3260 psi) | 310 bar (4500 psi) | |||
| MAX. WORKING PRESSURE | 350 Bar | ||||
| CAPACITY | 180 l/min | 250 l/min | 320 l/min | ||
| MOTOR POWER | 4 kW (5,5 Hp) | 5,5 kW (7,5 Hp) | 7,5 kW (10 Hp) | ||
| COMPRESSOR SPEED | 1160 rpm | 1450 rpm | 1700 rpm | ||
| 1st STG PRESSURE RANGE | 5 – 20 Bar | ||||
| 2nd STG PRESSURE RANGE | 20-60 Bar | ||||
| 3rd STG PRESSURE RANGE | Outlet Pressure | ||||
| NUMBER OF STAGE | 3 | ||||
| NUMBER OF CYLINDER | 3 | ||||
| LUBRICATION SYSTEM | Forced Lubrication | ||||
| POWER TRANSMISSION | Belt-Pulley | ||||
| WORKING TEMP. RANGE | 0….+50 ᵒC | ||||
| DIMENSIONS (WxLxH) | 730 x 1040 x 1380 mm | ||||
| WEIGHT | 350 kg | 35 Kg | 360 kg | ||
| STANDARD EQUIPMENT | |||||
| P41 Purifier and Refillable Cartridge | |||||
| Breathing Air Quality Complies with EN 12021:2014 | |||||
| Water Separator | |||||
| Intercooler and Aftercooler (Stainless) | |||||
| Priority Valve – Check Valve | |||||
| Safety Valve at Each Stage | |||||
| Oil Level Glass – Oil Level Switch | |||||
| Shock Mounts | |||||
| Manuel Start – Stop – Drain | |||||
| Thermal Overload Protection for Electric Motor | |||||
| Electrostatic Painted Silent Canopy | |||||
| OPTIONAL | |||||
| Automatic Start – Stop – Drain | |||||
| Dual Pressure System 225-310 Bar / 3260-4500 Psi | |||||
| Replaceable (Disposable) Cartridge | |||||
