Description
APPLICATION

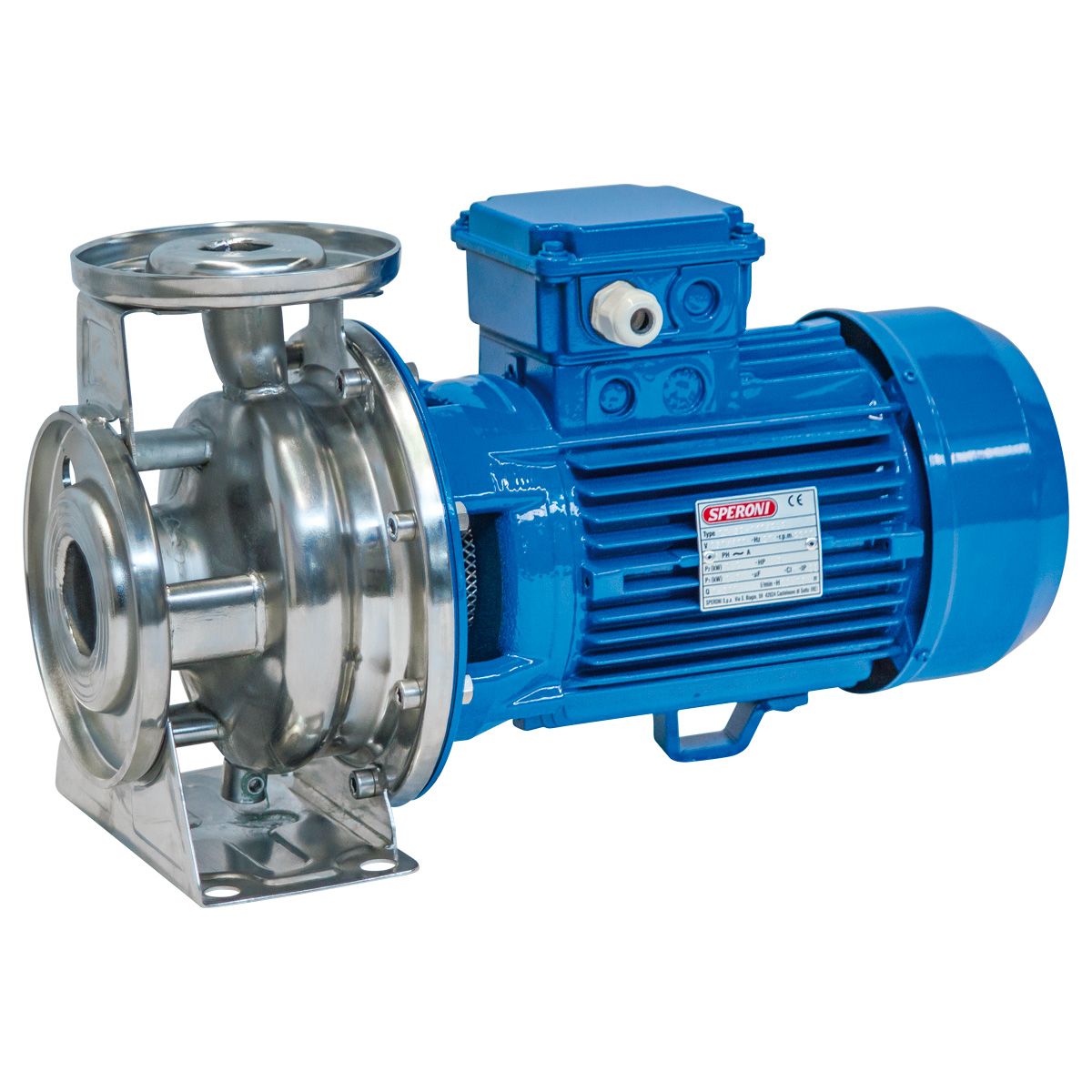

Centrifugal, monoblock and single-impeller electrical pumps are ideal for pumping clean water and other chemically and mecha- nically non-aggressive liquids. These system can be installed in any position, provided the inlet opening faces upwards, and, thanks to their special design – which allows back pull out of the motor and the rotary parts of the pump and subsequent re-assembly without having to remove the pump body and the pipes connected to it.
Can be easily and conveniently used for a wide variety of appli- cations in civil, agricultural, industrial or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high pressure system, heating, conditioning and any other general service requi- ring transfer of clean liquids.
| OPERATING CONDITIONS | |
| Liquid temperature up to 35°C (for home use according to EN 60335-2-41) | |
| Temperature max. liquid: 90°C (for other uses) | |
| Ambient temperature up to 40°C | |
| Total suction lift up to 7 mt. | |
| Continuous duty | |
| MOTOR | |
| Two-Pole induction motor (n = 2850 min-1) | |
| Insulation Class F | |
| Protection IP 55 | |
| MATERIALS | |
| Pump Body | Stainless Steel AISI 304 |
| Pump Flange | Stainless Steel AISI 304 |
| Impeller | Stainless Steel AISI 304 |
| Shaft with Rotor | Stainless Steel AISI 304 |
| Mechanical Seal | Ceramic/Graphite/NBR |
| TYPE | DIMENSIONS in mm | WEIGHT | ||
| Three-phase | P | L | H | Kg |
| CX 32-160/1,5 | 250 | 475 | 335 | 23,1 |
| CX 32-160/2,2 | 250 | 475 | 335 | 26,1 |
| CX 32-200/3 | 340 | 620 | 485 | 40,7 |
| CX 32-200/4 | 340 | 620 | 485 | 50,2 |
| CX 32-200/5,5 | 340 | 620 | 485 | 67,7 |
