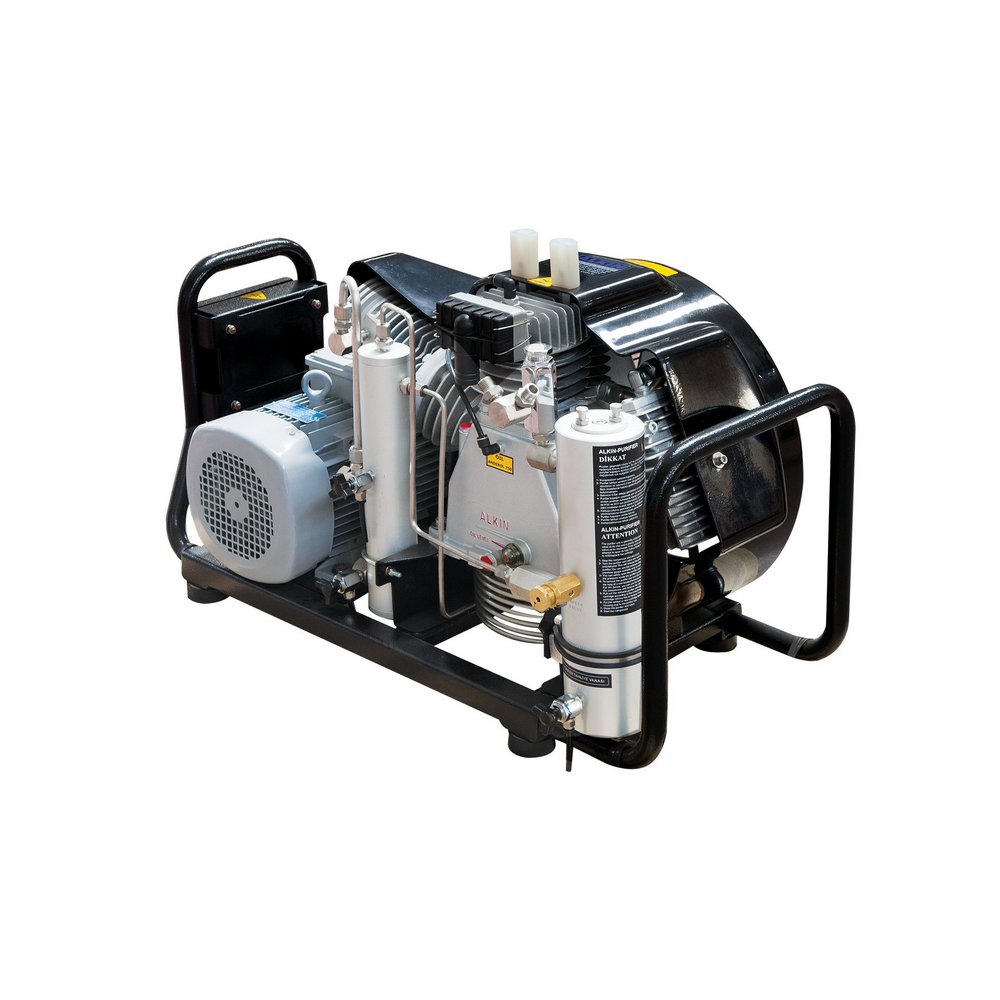

W31 – Mariner Horizontal

SKU: 3AS-COMP-W31MH-1 Categories ,

The three-stage, reciprocating, splash lubrication system, and portable design of the W31 series compressors provide exceptional performance to their consumers. Compressed air capacity ranges from 110 to 145 liters per minute at a maximum working pressure of 350 bar.

They are ideal for use in operations requiring breathing air in accordance with EN 12021 standard and high pressure air, and are available with electric, petrol, and diesel engine drive options.



Description

MODELW31 – MARINER
INTENDED USECompressed Air / Breathing Air
FILTER SYSTEMP21
WORKING PRESSURE225 Bar (3260 psi)210 bar (4500 psi)
MAX. WORKING PRESSURE350 bar
CAPACITY100 l/min (3.5 Cfm)140 l/min (4.9 Cfm)
MOTOR POWER2.2 kW (3 Hp)3 kW (4 Hp)
COMPRESSOR SPEED1050 rpm1350 rpm
1st STG PRESSURE RANGE3.5 – 4.5 Bar
2nd STG PRESSURE RANGE30 – 40 Bar
3rd STG PRESSURE RANGEOutlet Pressure
NUMBER OF STAGE3
NUMBER OF CYLINDER3
LUBRICATION SYSTEMSplash Lubrication
POWER TRANSMISSIONBelt-Pulley
WORKING TEMP. RANGE0….+50 ᵒC
DIMENSIONS (W x L x H)440 x 850 x 520 mm
WEIGHT64 kg
STANDARD EQUIPMENT
P21 Purifier and Refillable Cartridge
Breathing Air Quality Complies with EN 12021:2014
Water Separator
Intercooler and Aftercooler
Priority Valve, Check Valve
Safety Valve at Each Stage
Oil Level Glass
Shock Mounts
Manuel Start – Stop – Drain
Thermal Overload Protection for Electric Motor
Electrostatic Painted Portable Chassis
OPTIONAL
Automatic Start – Stop – Drain
Dual Pressure System 225-310 Bar / 3260-4500 Psi
Petrol/Diesel Engine Option
Replaceable (Disposable) Cartridge

Additional information

Weight64 kg
Dimensions102.6 × 42.7 × 52.8 cm

Related Products

Emergency Escape Breathing Device (EEBD)
An Emergency Escape Breathing Device, or EEBD, is...

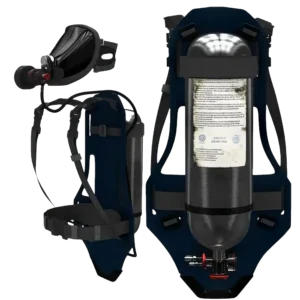

Self-Contained Breathing Apparatus (SCBA)
A self-contained breathing apparatus (SCBA) is a device...
CNC Cutting Machine
A CNC (computer numerical control) cutting machine is...

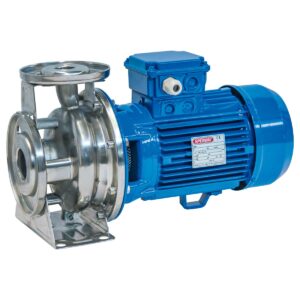

Speroni CX 32
Centrifugal, monoblock and single impeller electrical pumps are...

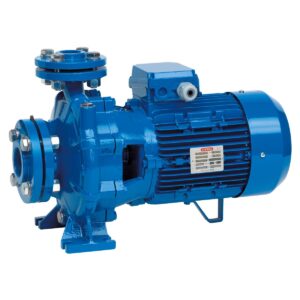

Speroni CS 32
Centrifugal, monoblock and single impeller electrical pumps with...

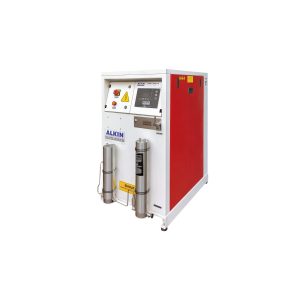

W32 – CANOPY
W32 model compressors are ideal for compressed air...
Image of W32 Enclosed HP Compressor from Alkin

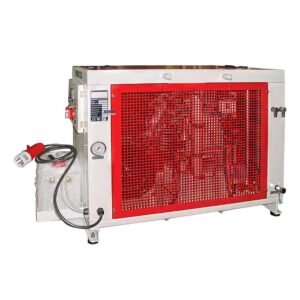

W32 – ENCLOSED
