Description

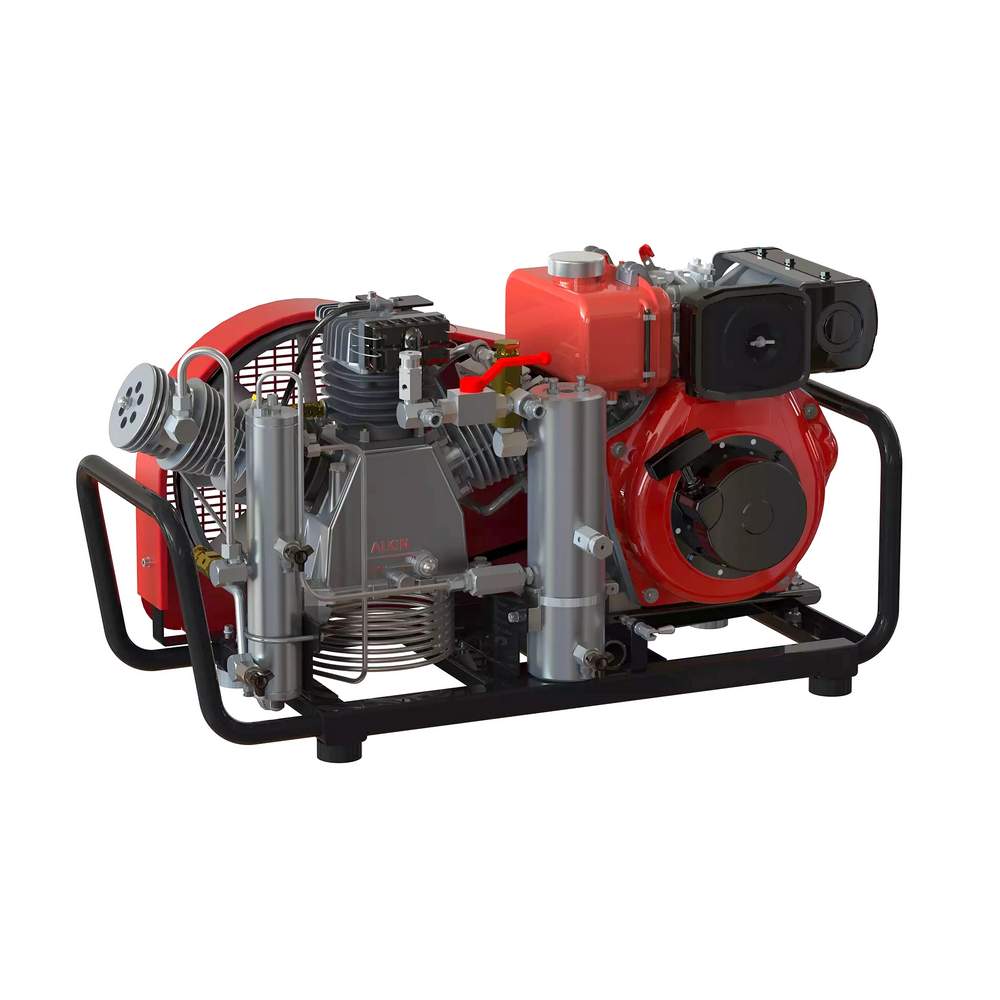

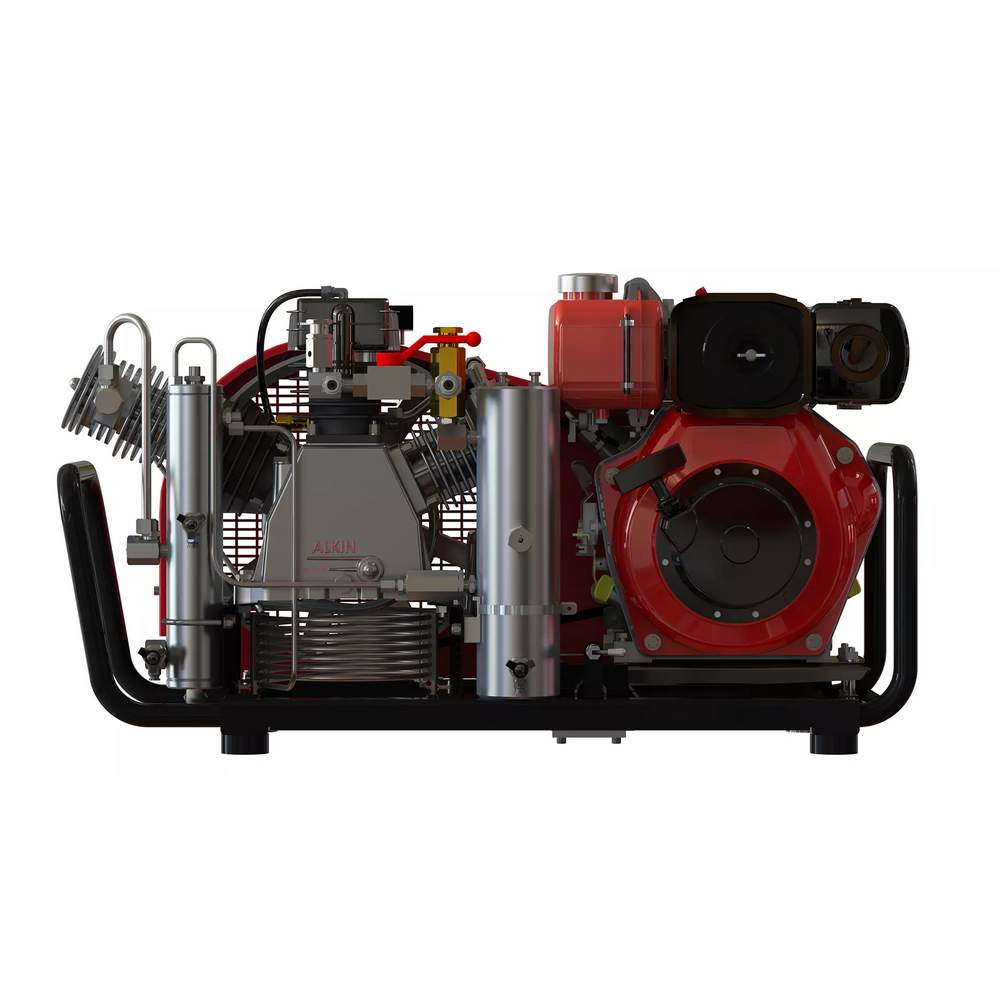

| MODEL | W31 – DIESEL | |
| INTENDED USE | Compressed Air / Breathing Air | |
| FILTER SYSTEM | P21 | |
| WORKING PRESSURE | 225 Bar (3260 psi) | 210 bar (4500 psi) |
| MAX. WORKING PRESSURE | 350 bar | |
| CAPACITY | 100 l/dk (3,5 Cfm) | 140 l/dk (4,9 Cfm) |
| MOTOR POWER | 2,2 kW (3 Hp) | 3 kW (4 Hp) |
| COMPRESSOR SPEED | 1050 rpm | 1350 rpm |
| 1st STG PRESSURE RANGE | 3.5 – 4.5 Bar | |
| 2nd STG PRESSURE RANGE | 30-40 Bar | |
| 3rd STG PRESSURE RANGE | Output Pressure | |
| NUMBER OF STAGE | 3 | |
| NUMBER OF CYLINDER | 3 | |
| LUBRICATION SYSTEM | Output Pressure | |
| POWER TRANSMISSION | Belt-Pulley | |
| WORKING TEMP. RANGE | 0….+50 ᵒC | |
| DIMENSIONS (W x L x H) | 427 x 1026 x 528 mm | |
| WEIGHT | 64 kg | |
| STANDARD EQUIPMENT | ||
| P21 Purifier and Refillable Cartridge | ||
| Breathing Air Quality Complies with EN 12021:2014 | ||
| Water Separator | ||
| Intercooler and Aftercooler | ||
| Priority Valve, Check Valve | ||
| Safety Valve at Each Stage | ||
| Oil Level Glass | ||
| Shock Mounts | ||
| Manuel Start – Stop – Drain | ||
| Thermal Overload Protection for Electric Motor | ||
| Electrostatic Painted Portable Chassis | ||
| OPTIONAL | ||
| Automatic Start – Stop – Drain | ||
| Dual Pressure System 225-310 Bar / 3260-4500 Psi | ||
| Replaceable (Disposable) Cartridge | ||
